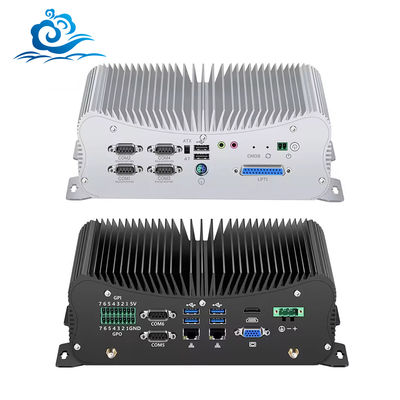

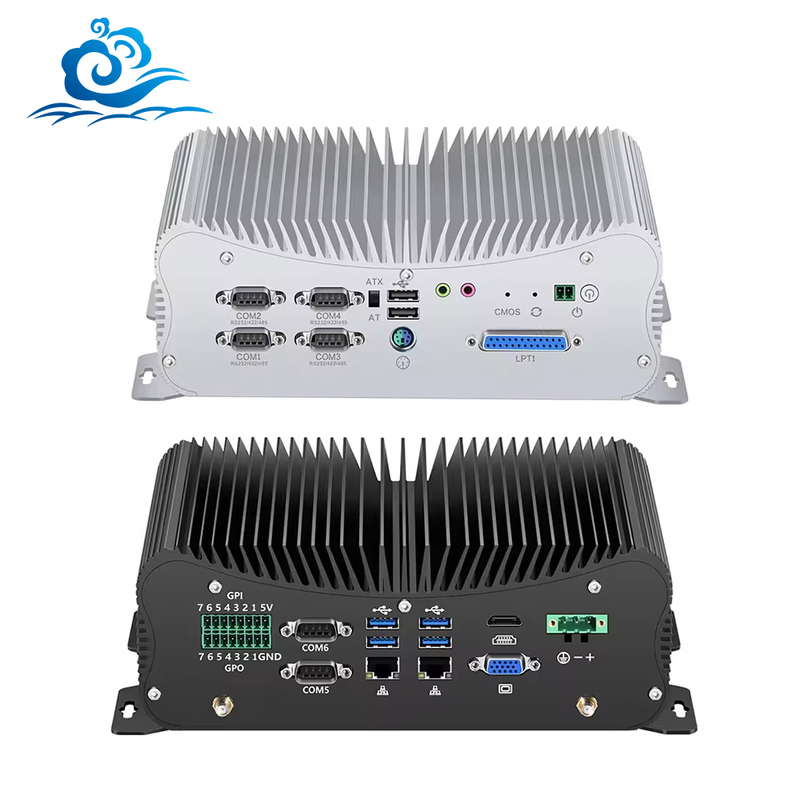

Fanless Mini PC with Intel Core i5-7267U DDR4 RAM and M.2 NVMe SSD Industrial Computer

Name: Fanless Mini PC with Intel Core i5-7267U DDR4 RAM and M.2 NVMe SSD Industrial Computer
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: H45G
Price: 169.00 USD
Availability: InStock

Nombre De La Marca:	HLY
Número De Modelo:	H45G
MOQ:	2

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Guangdong, China

núcleo del procesador:

Cuádruple

Tipo de RAM:

DDR4

Velocidad de la memoria:

2133/2400Mhz

Tipo de almacenamiento:

SSD M.2 NVMe 2280 + SSD mSATA

Memoria video:

2 GB

GPU:

Gráficos Intel UHD 620 / Gráficos Iris Plus 650

Puertos LAN:

2 puertos GbE RJ45

Puertos de COM:

2 x RS232, 4 x RS232/422/485

Puertos GPIO:

7 x entradas, 7 x salidas

Puertos USB:

4 USB 3.0, 2 USB 2.0

Entrada de energía:

9-36V

Temperatura de funcionamiento:

-20 ℃ a +60 ℃

Temperatura de almacenamiento:

-30 ℃ a +70 ℃

Dimensiones:

249 x 150 x 86 milímetros

Estructura:

Diseño sin ventilador, carcasa de aleación de aluminio

Resaltar:

Intel Core i5-7267U Fanless Mini PC

DDR4 RAM Industrial Computer

M.2 NVMe SSD Industrial Mini PC

Descripción de producto

Fanless Mini PC with Intel i5 Processors

Industrial-grade fanless mini PC featuring Intel i5 7267U/8250U processors, DDR4 memory, M.2 NVMe support, and robust connectivity options including 2x LAN, GPIO, RS232, SIM card slot, and LPT port.

Aluminum Alloy Sturdy Chassis

Special fanless chassis design with superior heat dissipation. Features low power consumption, fully enclosed dustproof construction, corrosion resistance, and high/low temperature tolerance. Capable of 24/7 operation in harsh industrial environments.

Key Features

14 GPIO ports (7 input, 7 output) with 5V voltage compatibility
2 x Gigabit Ethernet RJ45 ports (Intel i211/i210)
6 x DB9 COM ports (2 RS232 + 4 RS232/422/485)
LPT port for printer/scanner connectivity
ATX/AT power mode selection via DIP switch
3-pin Phoenix connector supporting 9-36V power input

Technical Specifications

Processor	Intel Core i5-7267U (2C/2T, up to 3.50GHz, 28W TDP) Intel Core i5-8250U (4C/8T, up to 3.40GHz, 15W TDP) Multiple other Intel processor options available
Display	Dual display support (VGA + HDMI) Intel UHD Graphics 620 (i5-8250U) or Iris Plus Graphics 650 (i5-7267U)
Memory	2x DDR4 SO-DIMM slots (up to 32GB) 2133/2400MHz, 1.35V
Storage	1x M.2 NVMe 2280 SSD slot 1x full height mSATA SSD slot 1x 2.5" SATA HDD/SSD bay

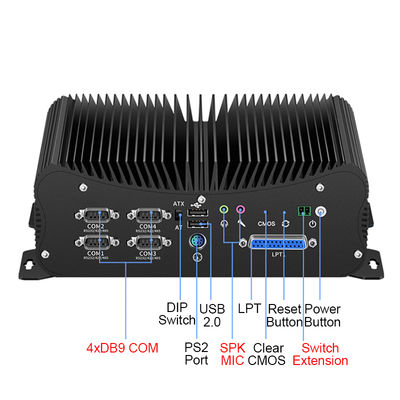

I/O Ports	4x USB 3.0, 2x USB 2.0, 6x COM, 1x LPT, 1x HDMI, 1x VGA, 1x PS/2, 14x GPIO, 1x MIC, 1x SPK, 2x antenna interfaces
Power	9-36V DC input via 3-pin Phoenix connector
Dimensions	249 x 150 x 86 mm

Package Contents

1 x Mini PC
1 x User manual
1 x Power cord
1 x SATA data and power cable

Note: Barebone unit does not include WiFi. Default configuration includes mSATA SSD and DDR4 RAM. For M.2 NVMe SSD or other custom requirements, please contact us.

Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY) specializes in mini computer manufacturing since 2013. With our own professional motherboard manufacturer, we've developed over 50 products applied in various fields including AI, industrial automation, military, and more. Our products are sold in over 60 countries with annual sales exceeding one million units.

Packaging & Shipping

Power Adapter

Multiple specifications available, selected based on shipping destination. Custom requests accommodated.

Payment Methods

L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Packaging

Waterproof bag protection with foam-secured inner carton box and outer protective packaging.

Shipping Options

DHL, FedEx, UPS, Aramex, post and Alibaba shipping available.

Frequently Asked Questions

What is the warranty policy?

First year free repair service, second and third year free repair with parts replacement costs.

Can I add my logo to the mini PC?

Yes, we support OEM/ODM services. Please provide your logo file for confirmation.

What is the minimum order quantity?

Single sample units available for testing.

How long does packaging take?

Approximately 3 days for inspection and assembly. 10 units ship in ~3 days, 50 units in ~8 days.

Are your mini PCs in stock?

Most models are in stock. Please confirm inventory before ordering.
